ATLONA AT-OME-EX-WP-KIT 4K/UHD HDMI Over HDBaseT TX Wallplate Kit
Rated 3.5/5 based on 26 customer reviews

ATLONA AT-OME-EX-WP-KIT 4K/UHD HDMI Over HDBaseT TX Wallplate Kit

Available: In Stock
Wishlist Compare
  • Item Conditon: New
$1,134.98

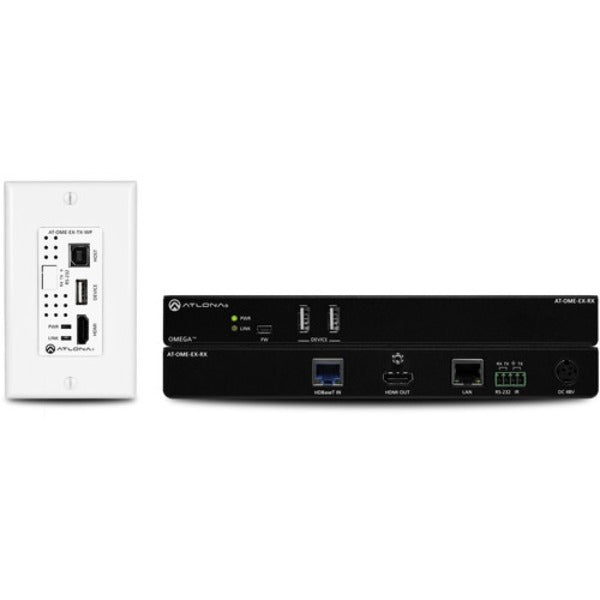

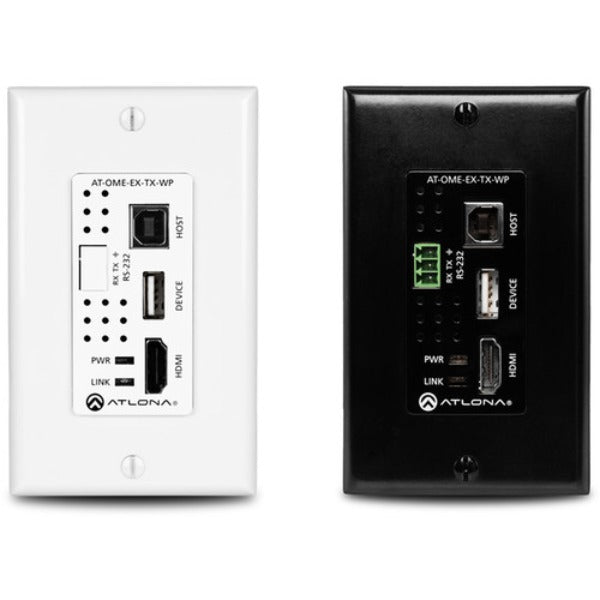

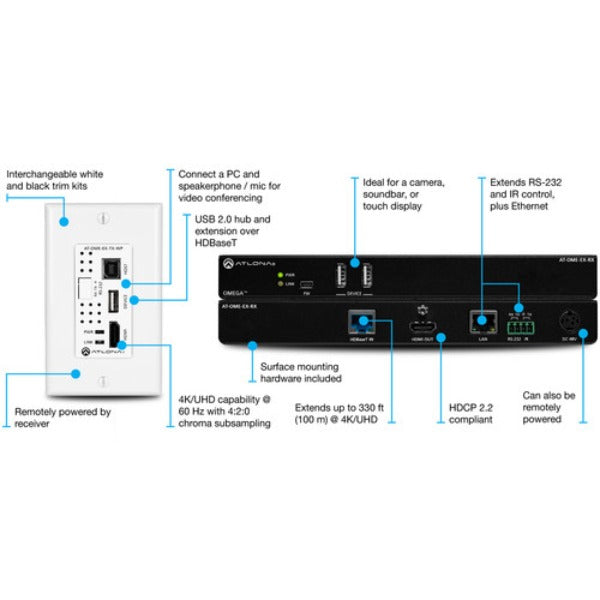

The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The transmitter features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products.





The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The transmitter features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products.





  • Video
  • HDMI: HDMI 2.0, HDCP 2.2
  • TMDS Clock: 300MHz
  • UHD/HD: 4096x2160(DCI)@60(1)/30/24 Hz, 3840x2160(UHD)@60(1)/50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
  • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
  • Color Space: YUV, RGB
  • Chroma Sub-Sampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit (1) Only supports 4:2:0
  • Audio
  • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolbyr Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT, DTS:X
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Depth: Up to 24-bit
  • USB
  • Signal: 2.0
  • Maximum Data Rate: 120Mbps
  • Control
  • CEC: Pass-through
  • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
  • Connectors
  • HDMI IN: (1) Type A, 19-pin female
  • HDBaseT OUT: (1) RJ45
  • HOST: (1) USB Type-B
  • DEVICE: (1) USB Type-A
  • RS-232: (1) captive screw, 3-pin
  • Indicators and Controls
  • PWR LED indicator: 1 - LED, green
  • LINK LED indicator: 1 - LED, yellow
  • Resolution/Distance: 4K/UHD/1080p
  • HDMI IN/OUT: 15' (5m)/30' (10m)
  • CAT5e: 295' (90m)/330' (100m)
  • CAT6/6a/7: 330' (100m)/330' (100m)
  • Power:
  • Consumption: 11.18W (includes 2.5W for USB, powered by RX)
  • USB Power: 2.5W per USB device interface
  • General
  • Operating Temp: 0r - 122rF (0r - 50rC)
  • Storage Temp: -4r - 140rF (-20r - 60rC)
  • Humidity (RH): 20 to 90% (non-condensing)
  • Dimensions (HxWxD): 4.07 x 1.80 x 2.63" (103.50 x 45.80 x 67mm)
  • Weight: 0.40Lbs (180g)
  • Safety: CE, RoHS, FCC
  • Installation guide
  • Interchangeable Black And White Wallplates and Faceplates,
  • Surface Mounting Hardware
  • External Universal Power Supply

    AT-OME-EX-RX
  • Video
  • HDMI Specification: HDMI 2.0, HDCP 2.2
  • TMDS Clock: 300MHz
  • UHD/HD: 4096x2160(DCI)@60*/30/24Hz, 3840x2160(UHD)@60*/50/24/25/30Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@25/29.97/30Hz, 720p@30/50/59.94/60Hz
  • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8bit, 10bit, 12bit
  • Note: *4K/UHD @ 60Hz only supports 4:2:0.
  • Audio
  • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolbyr Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT, DTS:X
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Depth: Up to 24bit
  • USB
  • Signal: 2.0
  • Maximum Data Rate: 120Mbps
  • Control
  • CEC: Pass-through
  • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
  • IR: Pass-through from control system to sink device
  • IP: Pass-through from control system to sink device up to 100Mbps over HDBaseT
