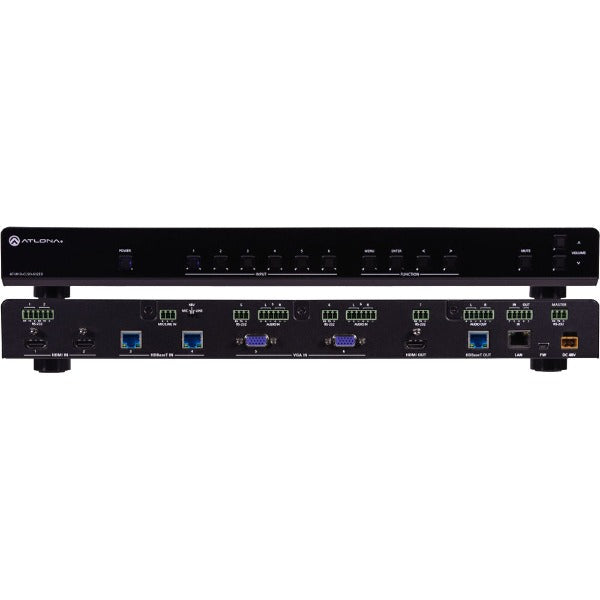

ATLONA AT-UHD-CLSO-612ED Multi-Format Switcher with Mirrored HDMI & HDBaseT Outputs
Rated 3.5/5 based on 26 customer reviews

ATLONA AT-UHD-CLSO-612ED Multi-Format Switcher with Mirrored HDMI & HDBaseT Outputs

Available: In Stock
Wishlist Compare
  • Item Conditon: New
$2,368.98

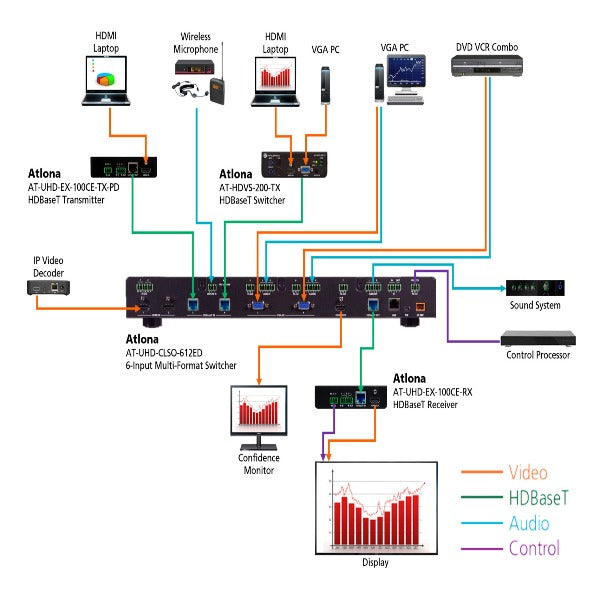

The Atlona AT-UHD-CLSO-612ED is a multi format switcher for digital and analog devices with an integrated 4K30 scaler.  Inputs include 2 HDMI, 2 HDBaseT, and 2 VGA.  An HDBaseT output with a mirrored HDMI output will feed your digital displays.  The HDBaseT output can send your signal up to 328' away as well as power to your HDBaseT receiver.  Use as an auto switcher to automatically detect the last plugged in input.





The Atlona AT-UHD-CLSO-612ED is a multi format switcher for digital and analog devices with an integrated 4K30 scaler.  Inputs include 2 HDMI, 2 HDBaseT, and 2 VGA.  An HDBaseT output with a mirrored HDMI output will feed your digital displays.  The HDBaseT output can send your signal up to 328' away as well as power to your HDBaseT receiver.  Use as an auto switcher to automatically detect the last plugged in input.







Video Resolution 4096 x 2160 @ 24/25/30 Hz
3840 x 2160 @ 24/25/30 (UHD)
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60 Hz
720p @ 50/59.94/60 Hz
576p, 576i
480p, 480i
VESA 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800
1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2
Color Depth 8-bit, 10-bit, 12-bit
Analog Audio Input PCM 2-Ch (De-embedded)
HDMI PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate Up to 24-bit
Distance Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m)
Signal Bandwidth: 10.2 Gbps
CEC Compliant
HDCP Switchable - Compliant/Non-Compliant - 1.4
Certification Unit: CE, FCC Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing
Power Consumption: 43 W
Idle Consumption: 4 W

Supply:
Input: 100 to 240 VAC ~ 50/60 Hz
Output: 48 VDC / 3.125 A
Dimensions (H x W x D) 1.7 x 17.2 x 10.0" (44 x 438 x 254 mm)
Weight 7.1 lb (3.2 kg)
Package Weight 11.95 lb
Box Dimensions (LxWxH) 22.6 x 15.3 x 4.1"
