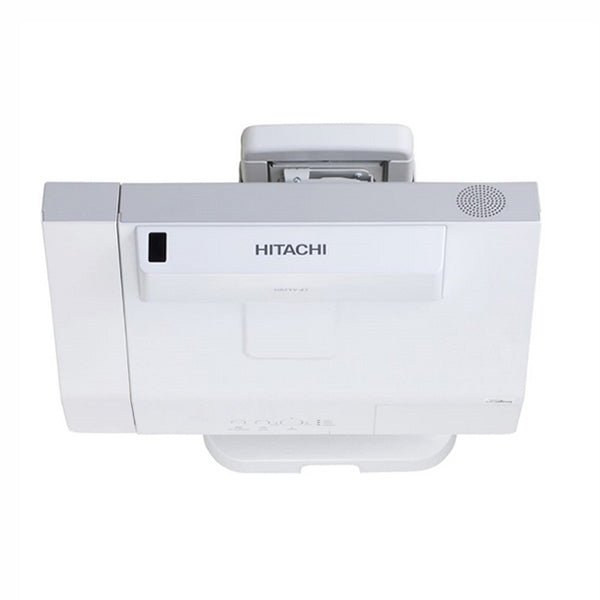

The Hitachi CP-AW2503 Ultra Short Throw 3LCD Projector features a WXGA 1280 x 800 native resolution and Polysilicon TFT 3LCD projection chip technology, which delivers authentic color reproduction in most lighting conditions. The CP-AW2503 provides 2700 ANSI Lumens of white output and color output brightness, as well as a 5000:1 contrast ratio.
It's compatible with HDTV, NTSC, PAL and SEACAM systems. The CP-AW2503 also has dual HDMI inputs, dual VGA inputs and a variety of other analog video input options. There are several audio inputs as well, including a microphone input. Plus, you can play back audio using the built-in 16W mono speaker, which also supports audio pass-through using a more efficient low power mode. However, there is an audio output as well in case you want to send your presentation's audio through larger speakers or even a PA system. There are also multiple USB inputs that support USB display, PC-less presenting, wireless network connection (Wi-Fi adapter required) and USB mouse control.
The projector's Ethernet jack supports network connectivity. This allows you to integrate the projector with Crestron RoomView, PJ-Link and AMX Device Discovery for remote operation and audits of network projectors. There are several security measures as well.
- White Brightness: 2,700 ANSI Lumens / 1,800 Lumens (Eco)
- Resolution: 1280x800
- Aspect Ratio: 16:10 (WXGA)
- Contrast: 5,000:1 (full on/off)
- Dynamic Iris: Yes
- Display Type: 0.59" 3LCD Panels
- Color Processing: 8-bit
- Video Modes: 720p, 1080i, 1080p/60, 1080p/50, 576i, 480p, 480i
- Data Modes: MAX 1600x1200
- Lamp Life: 4,000 hours / 6,000 hours (Eco)
- Lamp Model: DT01411
- Included Lens: Fixed focal length , Powered focus
- Optional Lenses: No
- Lens Shift: No
- Throw Distance: 1.2' - 2.2'
- Image Size: 56.60" - 103.77"
- Throw Ratio: 0.30:1 (D:W)
- Digital Zoom: Yes
- Digital Keystone: Horizontal & Vertical
- Projector Size: 5.35" x 14.84" x 14.17" (HxWxD)
- Weight: 9.5 lbs
- Audible Noise: 36 dB / 29 dB (Eco)
- Internal Speakers: 16.0 Watts Mono
- Power: 360 Watts 100V - 240V
- Connection Panel
- Composite: RCA
- HDMI x 2
- Network: RJ-45
- RS232: DB-9pin
- USB x 3
- VGA In: Dsub-15pin x 2
- Features
- Short-Throw
- Closed Captioning
- Geometric Correction
- Crestron RoomView™
- Additional Features
- Optional wireless adapter available.
